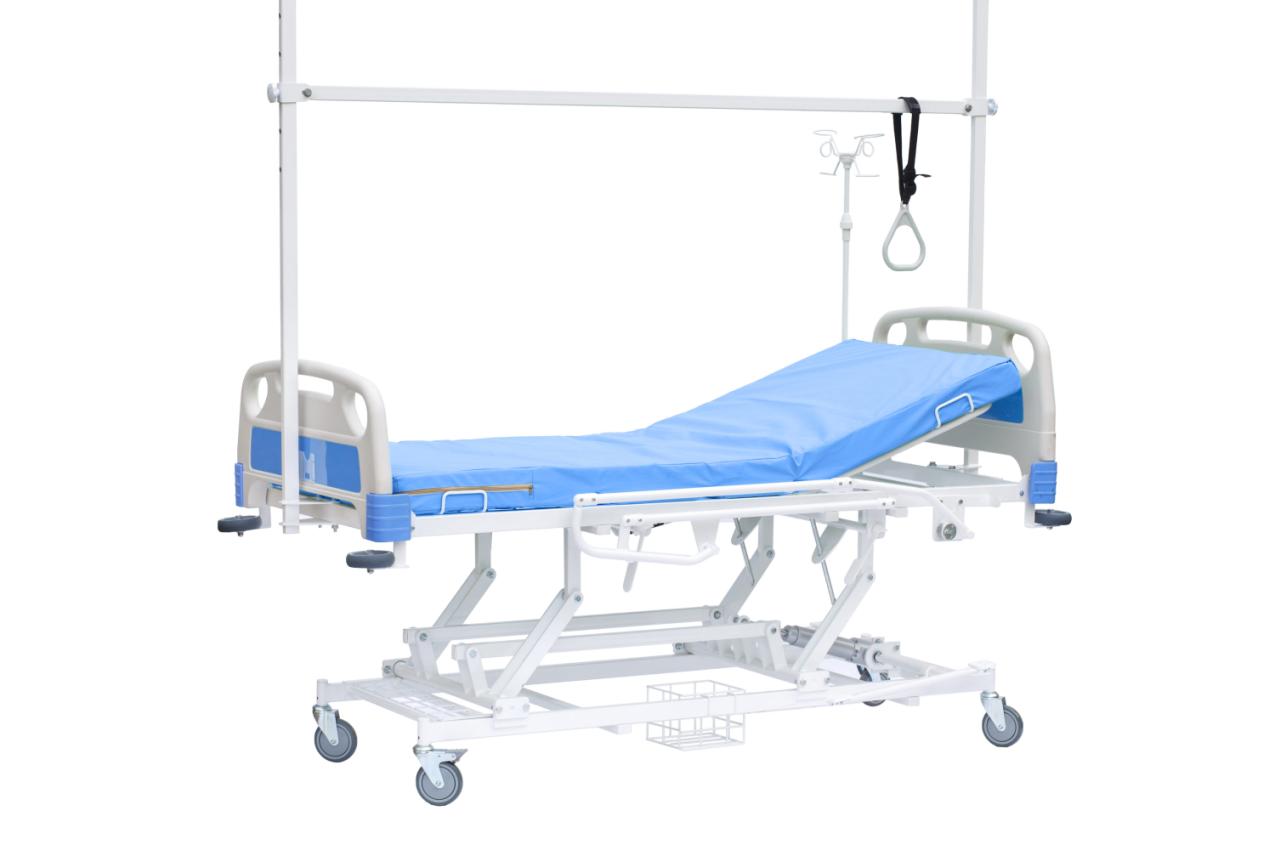

Functional medical bed (4-section) with hydraulic drive "Unova-4GP"
Overall dimensions of the product (LxWxH), mm: 2270x1000x965/1390mm
-height of the bed with the Balkansky frame: 2204x1007x1785.
-height of the bed with an adjustable bracket: 2270x1000x950.
Frame:
- profile pipe 50x30x2mm;
- four-section bed;
- metal mesh made of steel rod with 50*80mm cells;
- backrest material - plastic;
- hydraulic bed height adjustment in the range of 500-900mm;
- to adjust the head section, a "pistol bolt" mechanism is installed (60º);
- to adjust the thigh section, a "gas spring" mechanism is installed (55º);
- to adjust the leg section - 2 ratchets (20º);
- transportability: 4 wheels ø150 mm (each with an individual brake);
- complete with a mattress (sheet foam rubber 100 mm) in a moisture-resistant mattress pad (medical oilcloth);
Options:
- removable folding side rails;
- telescopic infusion stand;
- Balkan frame (or portable bracket);
- stand for a bedpan; urine bag.
Maximum load, kg: no more than 240.
Product weight, kg: 160.
The manufacturer has the right to change the design and construction without notifying the buyer.
